RC2014 devices I’ve built!

Introduction

The RC2014 is an 8-bit computer kit based on the Z80. I recommend buying and building one – it has taught me a lot. It’s easy to solder because all its components are through-hole with 2.54 mm (0.1″) pitch. (I have the Classic II version.) Here are some devices I’ve built for the RC2014.

The circuit diagrams were drawn with GNU IMP using a 7×9-pixel grid. Here is an image with all the building blocks (wires, components, letters). See also my pinouts page.

I used this circuit for address decoding in many of my devices: Peripheral Addressing – RC2014.

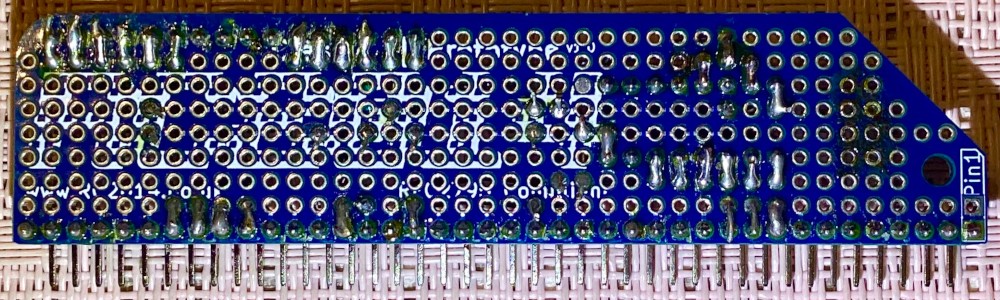

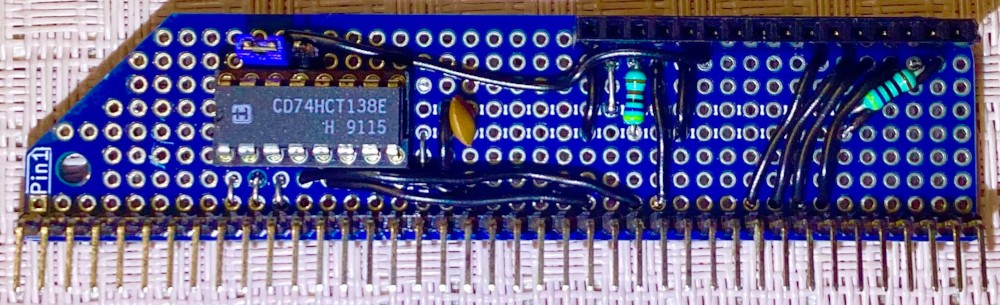

HD44780 LCD adapter

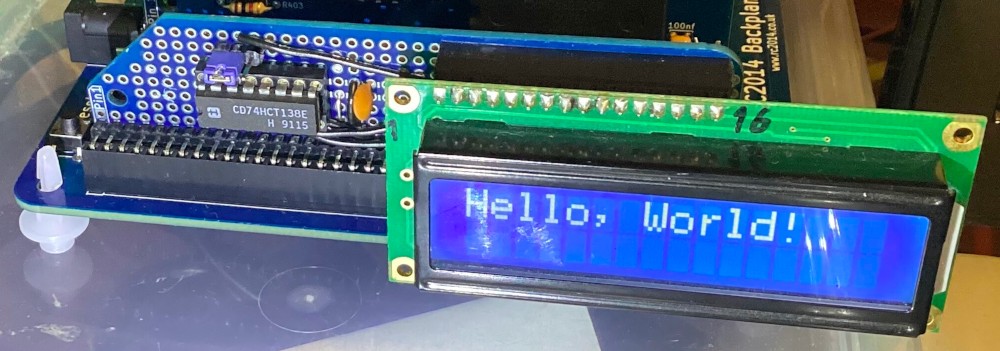

An adapter for connecting a Hitachi HD44780 -compatible character-based LCD module to the RC2014. I built the adapter on a Classic II prototype PCB.

Circuit diagram

List of components

• resistor, 470 Ω
• resistor, 4.7 kΩ
• capacitor, ceramic, 100 nF
• IC, 74138 (1-of-8 inverting decoder/demultiplexer)

How it works

The LCD is used in 4-bit write-only mode. To send a nybble to the LCD, write a byte to any I/O address between 0x00–0x1f (the exact address does not matter). Bits of the byte (bit 7 denotes the most significant bit): 7–5 = unused, 4 = type of nybble (0=instruction, 1=data), 3–0 = the nybble to send.

You can change the I/O address range by connecting LCD EN to a different 74138 pin:

• Y0: 0x00–0x1f
• Y1: 0x20–0x3f
• Y2: 0x40–0x5f
• Y3: 0x60–0x7f

See also: Hitachi HD44780 LCD controller – Wikipedia

Basic program

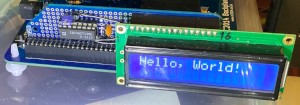

An RC2014 BASIC program that prints “Hello, World!” on the LCD:

 10 REM Port, Delay, Text
 20 P = 0
 30 D = 10
 40 T$ = "Hello, World!"
 50 DATA 3,3,3,2, 2,8, 0,8, 0,1, 0,6, 0,12, -1
 60 READ N
 70 IF N = -1 THEN GOTO 110
 80 OUT P, N
 90 FOR L = 1 TO D: NEXT
100 GOTO 60
110 FOR L = 1 TO LEN(T$)
120 A = ASC(MID$(T$, L, 1))
130 OUT P, 16 + INT(A / 16)
140 OUT P, 16 + (A AND 15)
150 FOR M = 1 TO D: NEXT
160 NEXT

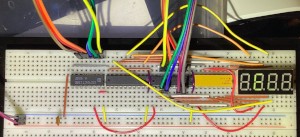

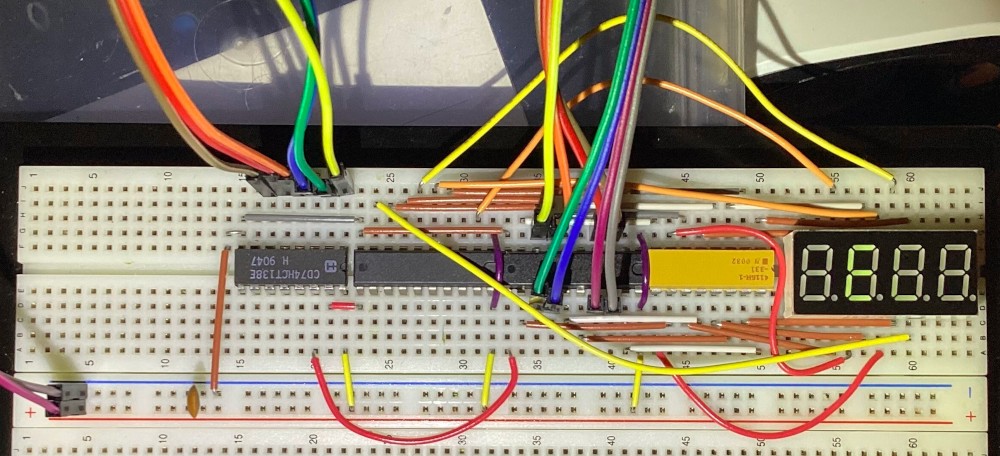

7-segment/matrix LED display adapter

Lets you connect up to 8×8 LEDs (e.g. eight 7-segment displays including dots) to the RC2014. They are rapidly lit in turn, so they appear to be lit at the same time.

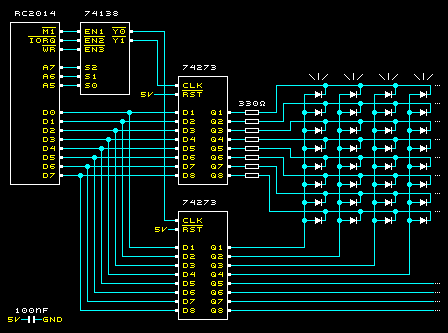

Circuit diagram

The 7-segment displays can be common-anode (plus, shown) or common-cathode (minus).

List of components

• 8 × resistor, 330 Ω (or according to taste)
• capacitor, ceramic, 100 nF
• IC, 74138 (1-of-8 inverting decoder/demultiplexer)
• 2 × IC, 74273 (8-bit 3-state D flip-flop with reset)
• 8 × 7-segment LED display

The 74273 chips can be replaced with 74374 chips (8-bit 3-state D flip-flop with output enable). Connect their OE pins to ground.

How it works

Write to any I/O address between 0x00–0x1f to set the “digit” bits (which 7-segment display should be lit):

• With common-anode (+) displays, one bit should be 1 and the others 0 (0x80, 0x40, …).
• With common-cathode (−) displays, one bit should be 0 and the others 1 (0x7f, 0xbf, …).

Write to any I/O address between 0x20–0x3f to set the “segment” bits (which segments should be lit in that digit):

• With common-anode (+) displays, bits corresponding to lit segments should be 0 and the others 1 (e.g. 0x00 to light all segments).
• With common-cathode (−) displays, bits corresponding to lit segments should be 1 and the others 0 (e.g. 0xff to light all segments).

Basic program

This RC2014 BASIC program should light two segments on each of four common-anode displays:

 10 REM Ports, Delay, digits, segments
 20 P1 = 0
 30 P2 = 32
 40 D = 10
 50 DATA 128,64,32,16
 60 DATA 63,207,243,252
 70 FOR L = 0 TO 7: READ V(L): NEXT
 80 FOR L = 0 TO 3
 90 OUT P1, 0
100 OUT P2, V(L + 4)
110 OUT P1, V(L)
120 FOR M = 1 TO D: NEXT
130 NEXT
140 GOTO 80

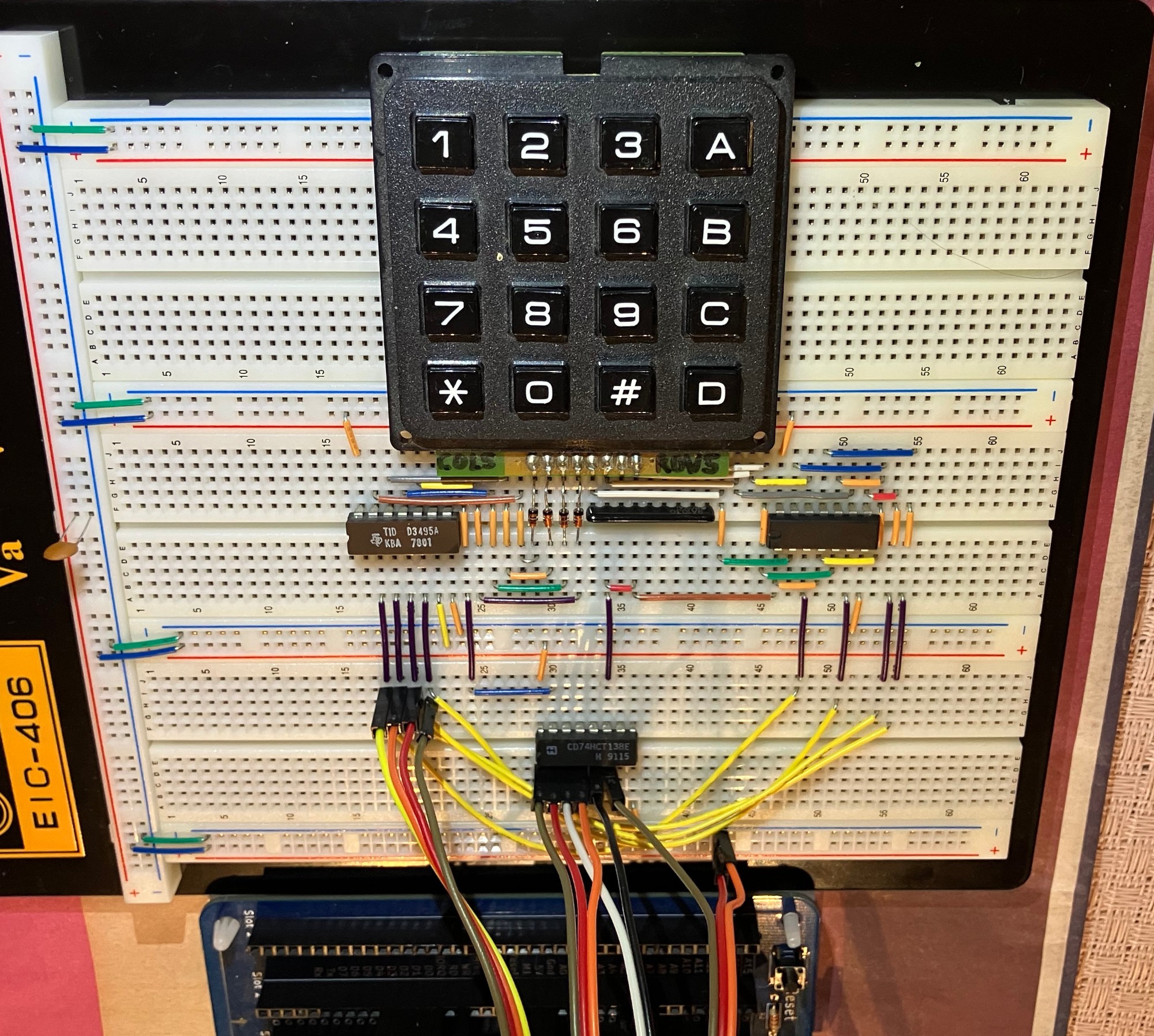

Keypad adapter, version 1

Lets you connect a 4×4-button matrix keypad to the RC2014. Simpler than version 2 (below) but cannot be extended for larger keypads. Detects up to two simultaneous keypresses correctly.

Circuit diagrams

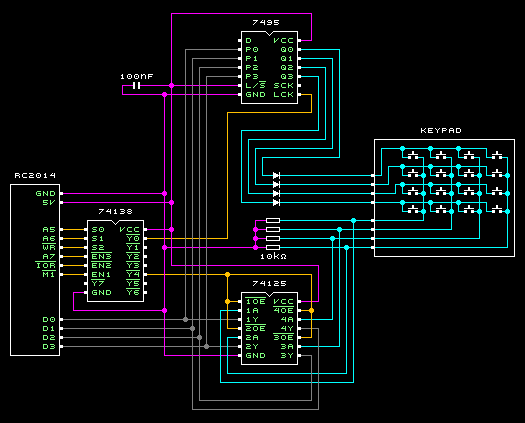

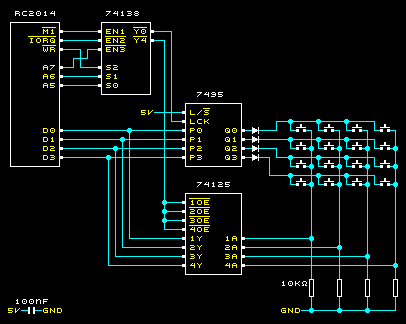

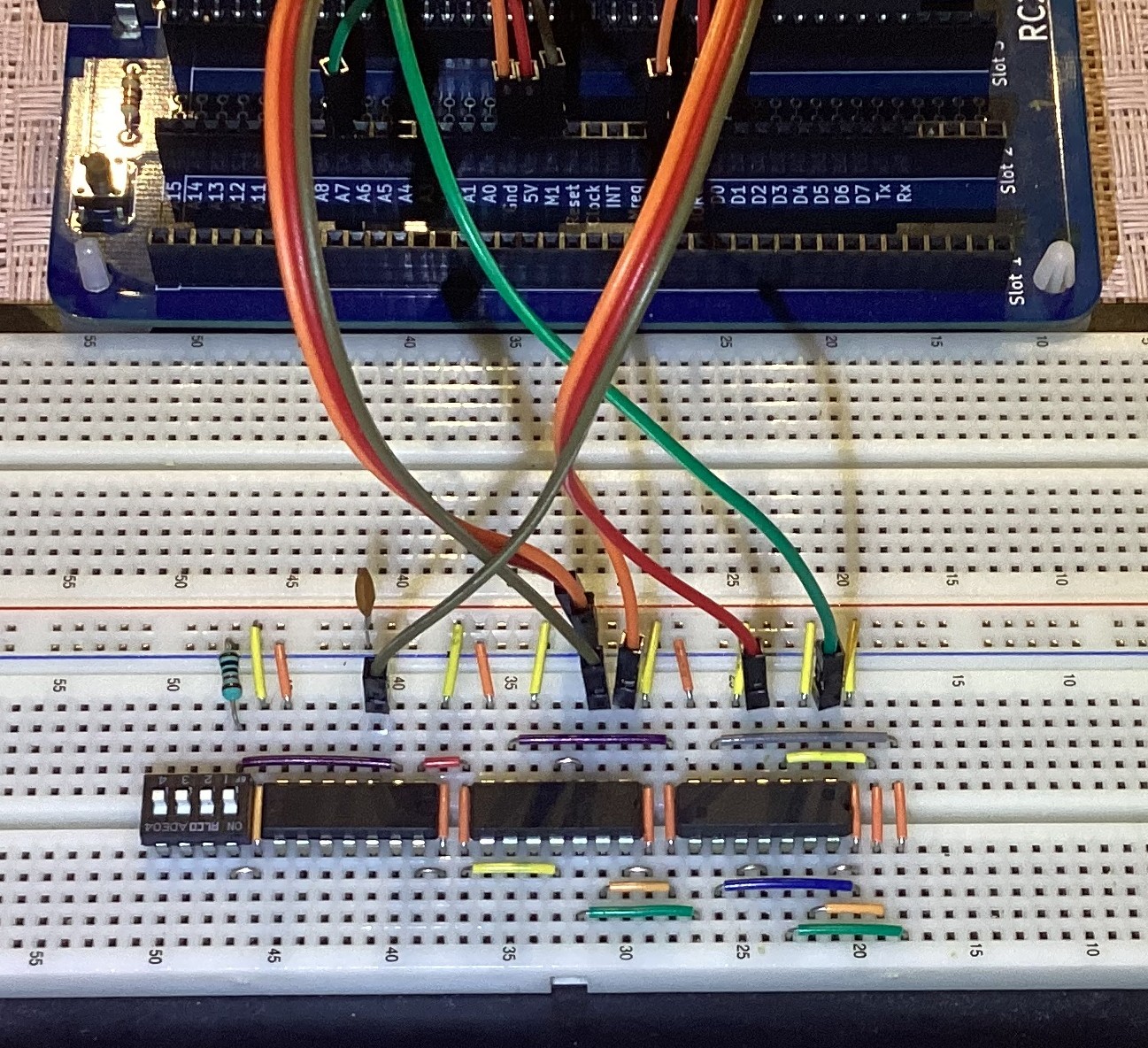

High-level circuit diagram (no VCC/ground, pins of ICs grouped by direction):

Low-level circuit diagram (has VCC/ground, actual pinouts except for the RC2014, mimics the layout on a breadboard):

List of components

• 4 × resistor, 10 kΩ
• capacitor, ceramic, 100 nF
• 4 × diode (I used the 1N4448)
• IC, 7495 (4-bit universal shift register with separate shift and parallel-load clocks)
• IC, 74125 (Quad 3-state noninverting buffer with active low enables)
• IC, 74138 (1-of-8 inverting decoder/demultiplexer)
• matrix keypad, 4×4 buttons (should have 4 pins for rows and 4 for columns)

How it works

The 7495 IC is used only in parallel load mode, not for shifting. The diodes prevent it from short-circuiting if two buttons are pressed in the same column at the same time.

To read one row of the keypad:

1. Write a byte with one bit high (e.g. 0x01) to any I/O address between 0x00–0x1f. This causes the 7495 to set the voltage of one keypad row high and the rest low.
2. Read a byte from any I/O address between 0x00–0x1f. The bits go through the 74125 and correspond to the buttons that were pressed in the selected keypad row.

To change the I/O address range, connect the 74138 to the 7495 and to the 74125 as follows:

• addresses 0x00–0x1f: 74138 Y0 to 7495 CLK and 74138 Y4 to 74125 EN
• addresses 0x20–0x3f: 74138 Y1 to 7495 CLK and 74138 Y5 to 74125 EN
• addresses 0x40–0x5f: 74138 Y2 to 7495 CLK and 74138 Y6 to 74125 EN
• addresses 0x60–0x7f: 74138 Y3 to 7495 CLK and 74138 Y7 to 74125 EN

Basic program

An RC2014 BASIC program that continuously prints the keypad buttons that are being held. (The same program is also used for version 2 of the keypad adapter below.)

 10 REM Port, keypad Buttons, VAlues out/in
 20 P = 0
 30 B$ = "123A456B789C*0#D"
 40 FOR L = 0 TO 3: VA(L) = 2 ^ L: NEXT
 50 REM main loop (Buttons Pressed)
 60 BP$ = ""
 70 FOR L = 0 TO 3
 80 OUT P, VA(L)
 90 V = INP(P)
100 FOR M = 0 TO 3
110 IF V AND VA(M) THEN BP$ = BP$ + MID$(B$, L * 4 + M + 1, 1)
120 NEXT
130 NEXT
140 PRINT BP$
150 GOTO 60

Keypad adapter, version 2

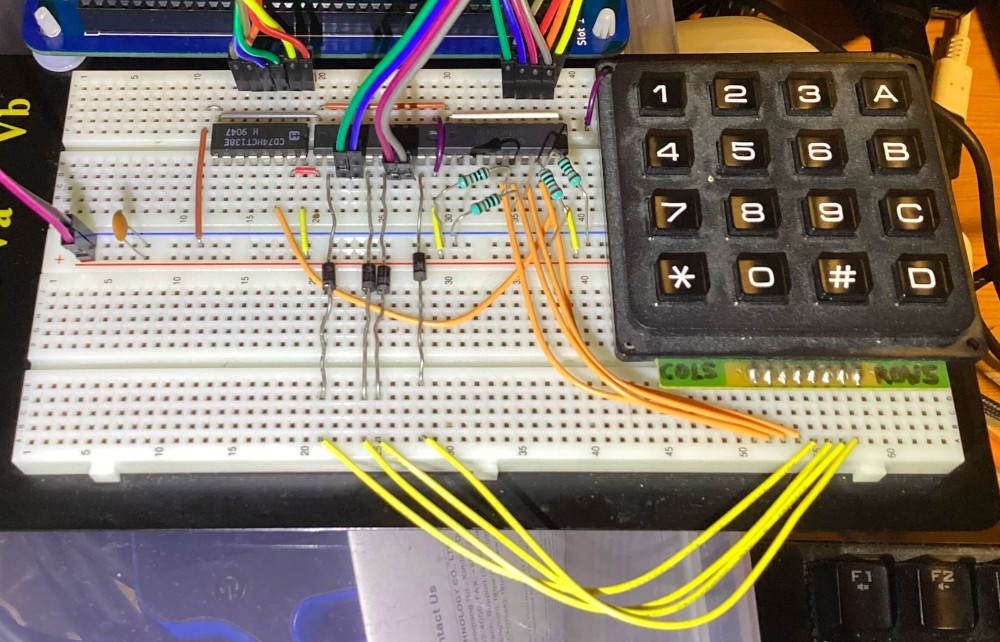

Lets you connect a 4×4-button matrix keypad to the RC2014. More complex than version 1 (above) but can be easily extended to 8×8 buttons. Detects up to two simultaneous keypresses correctly. Heavily based on the official Digital I/O board.

Circuit diagrams

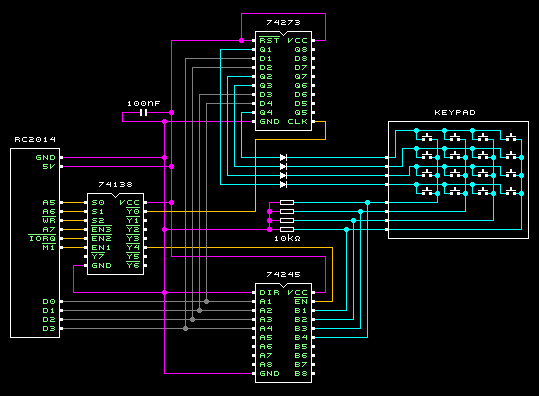

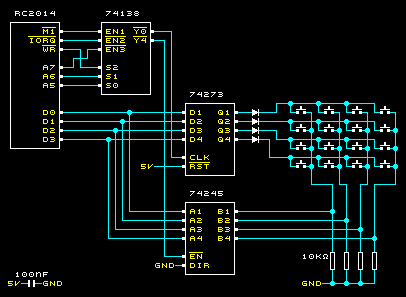

High-level circuit diagram (no VCC/ground, pins of ICs grouped by direction):

Low-level circuit diagram (has VCC/ground, actual pinouts except for the RC2014, mimics the layout on a breadboard):

List of components

• 4 × resistor, 10 kΩ
• capacitor, ceramic, 100 nF
• 4 × diode (I used the 1N4004)
• IC, 74138 (1-of-8 inverting decoder/demultiplexer)
• IC, 74245 (8-bit 3-state noninverting bus transceiver)
• IC, 74273 (8-bit 3-state D flip-flop with reset)
• matrix keypad, 4×4 buttons (should have 4 pins for rows and 4 for columns)

The 74273 can be replaced with a 74374 (8-bit 3-state D flip-flop with output enable). Connect its OE pin to ground.

How it works

To read one row of the keypad:

1. Write a byte with one bit high (e.g. 0x01) to any I/O address between 0x00–0x1f. This causes the 74273 to set the voltage of one keypad row high and the rest low.
2. Read a byte from any I/O address between 0x00–0x1f. The bits go through the 74245 and correspond to the buttons that were pressed in the selected keypad row.

The diodes prevent the 74273 from short-circuiting if two buttons are pressed in the same column at the same time.

To change the I/O address range, connect the 74138 to the 74273 and to the 74245 as follows:

• addresses 0x00–0x1f: 74138 Y0 to 74273 CLK and 74138 Y4 to 74245 EN
• addresses 0x20–0x3f: 74138 Y1 to 74273 CLK and 74138 Y5 to 74245 EN
• addresses 0x40–0x5f: 74138 Y2 to 74273 CLK and 74138 Y6 to 74245 EN
• addresses 0x60–0x7f: 74138 Y3 to 74273 CLK and 74138 Y7 to 74245 EN

Basic program

An RC2014 BASIC program that continuously prints the keypad buttons that are being held. (The same program is also used for version 1 of the keypad adapter above.)

 10 REM Port, keypad Buttons, VAlues out/in
 20 P = 0
 30 B$ = "123A456B789C*0#D"
 40 FOR L = 0 TO 3: VA(L) = 2 ^ L: NEXT
 50 REM main loop (Buttons Pressed)
 60 BP$ = ""
 70 FOR L = 0 TO 3
 80 OUT P, VA(L)
 90 V = INP(P)
100 FOR M = 0 TO 3
110 IF V AND VA(M) THEN BP$ = BP$ + MID$(B$, L * 4 + M + 1, 1)
120 NEXT
130 NEXT
140 PRINT BP$
150 GOTO 60

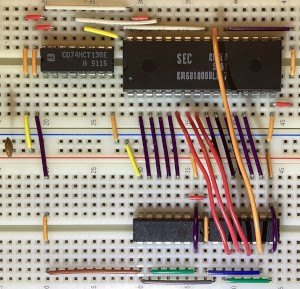

Extra RAM, version 1

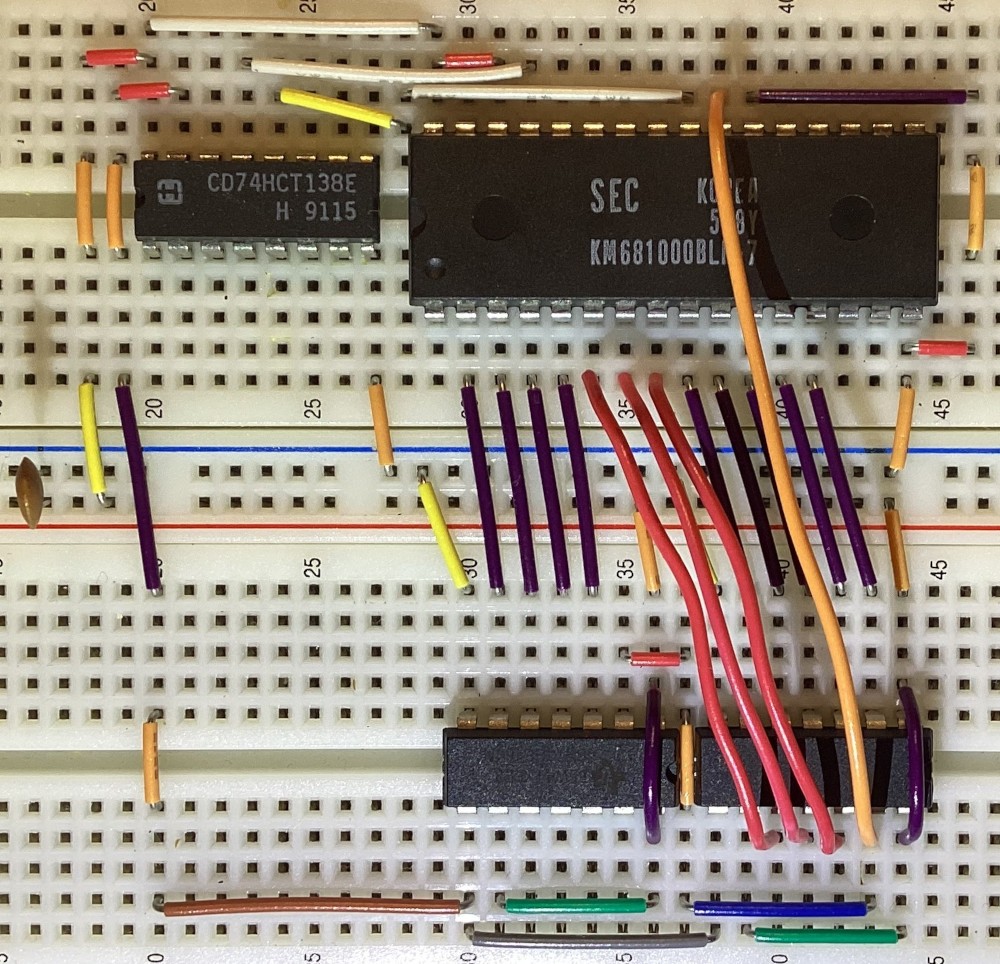

An adapter that lets you connect a 128-kilobyte (2¹⁷-byte) SRAM chip to the RC2014. The memory is organised into 4096 (2¹²) banks. Each bank is only 32 (2⁵) bytes. A 12-bit shift register stores the index of the current bank. Not many wires are needed but accessing the memory is slow.

Circuit diagrams

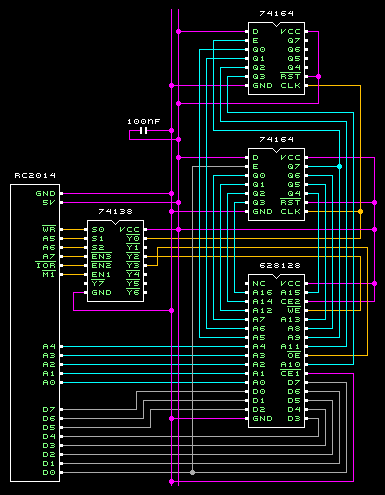

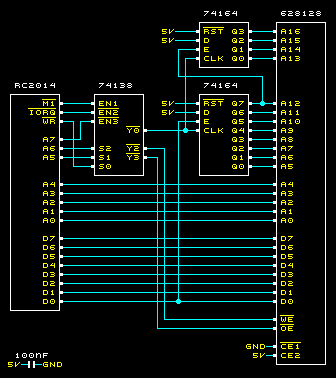

High-level circuit diagram (no VCC/ground, pins of ICs grouped by direction):

Low-level circuit diagram (has VCC/ground, actual pinouts except for the RC2014, mimics the layout on a breadboard):

List of components

• capacitor, ceramic, 100 nF
• IC, 74138 (1-of-8 inverting decoder/demultiplexer)
• 2 × IC, 74164 (8-bit serial-in parallel-out shift register)
• IC, SRAM, preferably 16k×8 to 2048k×8 bits (I used the 628128 which is 128k×8 bits)

Note: If your SRAM chip has more than 21 address lines, connect the extra lines to either ground or +5V (do not leave them floating).

How it works

To set the index of the current bank, write 12 bytes to any I/O port between 0x00–0x1f. (The exact port does not matter.) The least significant bit of each byte is shifted into the least significant bit of the bank shift register. (Other bits of bytes written do not matter.)

To access the contents of the current bank, read or write I/O ports 0x20–0x3f. The port used specifies the address within the bank.

Tip: The order of the RAM address lines does not matter. Neither does the order of the data lines.

Basic program

The program writes the first and last eight memory banks and prints their contents.

 10 PRINT "Writing banks..."
 20 FOR L = 0 TO 7
 30 A = L: GOSUB 500
 40 A = 3: B = 1 + L: GOSUB 600
 50 NEXT
 60 FOR L = 0 TO 7
 70 A = 4088 + L: GOSUB 500
 80 A = 5: B = 129 + L: GOSUB 600
 90 NEXT

100 PRINT "Reading banks..."
110 FOR L = 0 TO 7
120 A = L: GOSUB 500
130 GOSUB 700
140 NEXT
150 FOR L = 4088 TO 4095
160 A = L: GOSUB 500
170 GOSUB 700
180 NEXT

490 END

500 REM sub: set bank to a (12-bit)
510 REM destroys a, j
520 FOR J = 0 TO 11
530 OUT 0, A AND 1
540 A = INT(A / 2)
550 NEXT
560 RETURN

600 REM sub: fill bank with (addr*a+b) and 255
610 REM destroys j
620 FOR J = 0 TO 31
630 OUT 32 + J, (J * A + B) AND 255
640 NEXT
650 RETURN

700 REM sub: print bank contents
710 REM destroys j
720 FOR J = 0 TO 31
730 PRINT INP(32 + J);
740 NEXT
750 PRINT
760 RETURN

The output should look like this. (The lines with numbers on them are not shown here in full.)

Writing banks...
Reading banks...
 1  4  7  10  13  16  19 ...
 2  5  8  11  14  17  20 ...
 3  6  9  12  15  18  21 ...
 4  7  10  13  16  19  22 ...
 5  8  11  14  17  20  23 ...
 6  9  12  15  18  21  24 ...
 7  10  13  16  19  22  25 ...
 8  11  14  17  20  23  26 ...
 129  134  139  144  149  154  159 ...
 130  135  140  145  150  155  160 ...
 131  136  141  146  151  156  161 ...
 132  137  142  147  152  157  162 ...
 133  138  143  148  153  158  163 ...
 134  139  144  149  154  159  164 ...
 135  140  145  150  155  160  165 ...
 136  141  146  151  156  161  166 ...

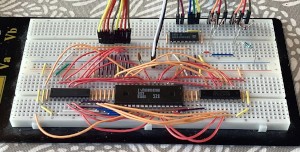

Extra RAM, version 2

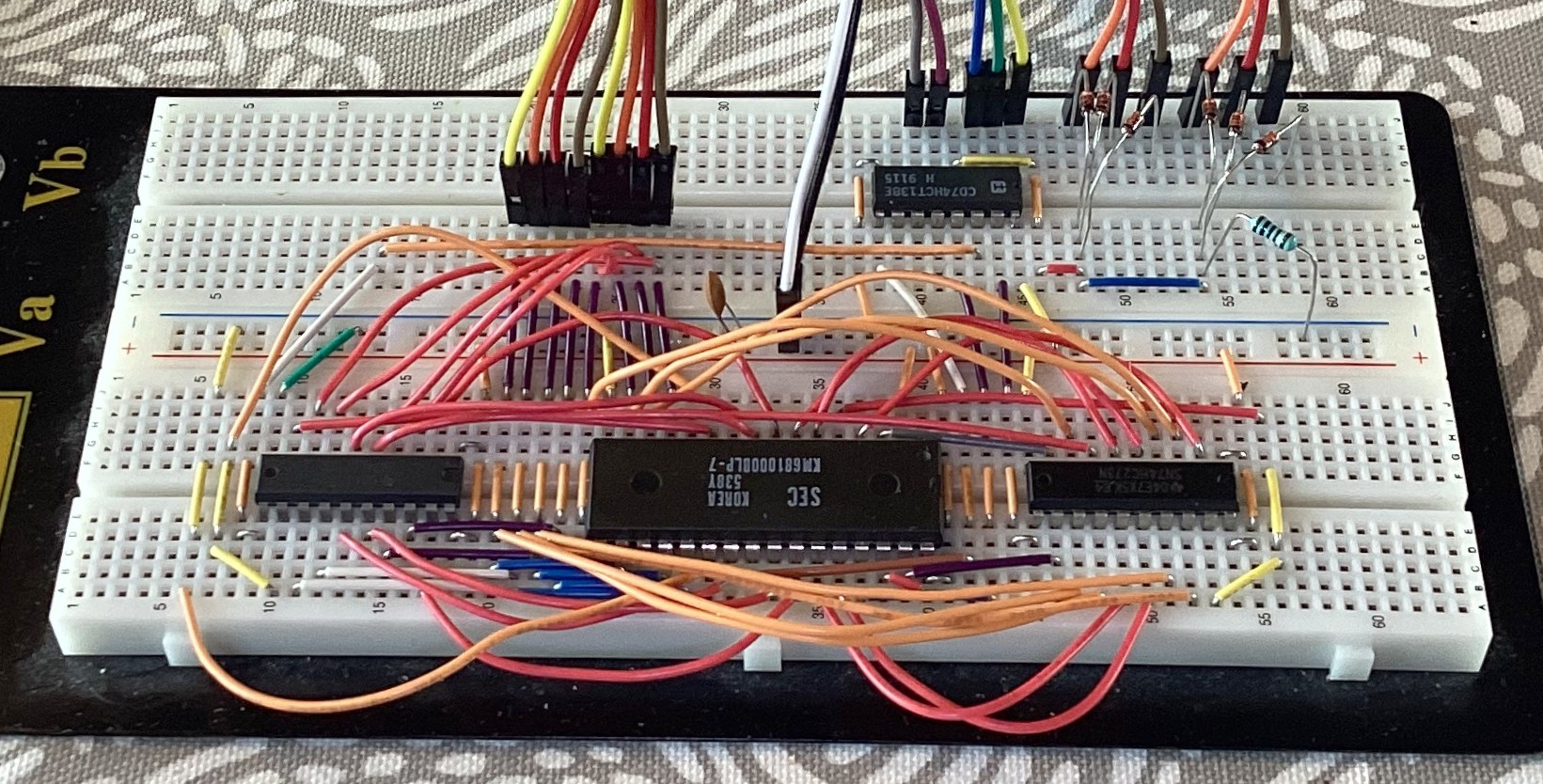

An adapter that lets you connect up to 64 kilobytes of extra SRAM to the RC2014. Compared to the previous version, this one is faster and reserves fewer I/O ports but is more complex.

Circuit diagrams

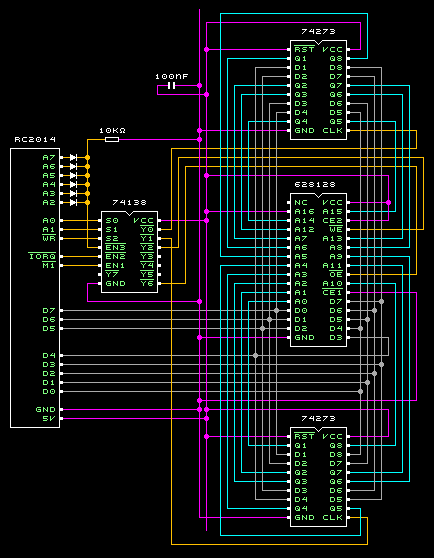

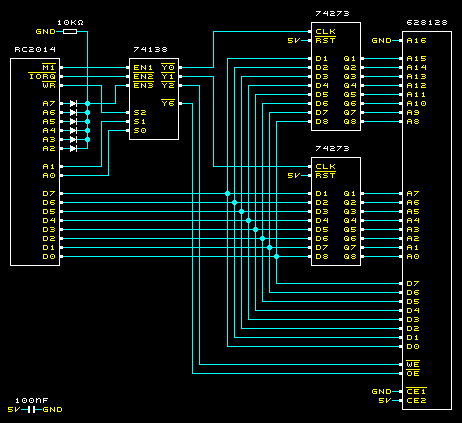

High-level circuit diagram (no VCC/ground, pins of ICs grouped by direction):

Low-level circuit diagram (has VCC/ground, actual pinouts except for the RC2014, mimics the layout on a breadboard):

List of components

• resistor, 10 kΩ
• capacitor, ceramic, 100 nF
• 6 × diode (I used the 1N4448)
• IC, 74138 (1-of-8 inverting decoder/demultiplexer)
• 2 × IC, 74273 (8-bit 3-state D flip-flop with reset)
• IC, SRAM, preferably 512×8 to 64k×8 bits (I used the 628128 which is 128k×8 bits)

Notes:

• The 74273 ICs can be replaced with 74374 ICs (8-bit 3-state D flip-flop with output enable). Connect their OE pins to ground.
• If your SRAM chip has more than 16 address lines, connect the extra lines to either ground or +5V (do not leave them floating).

How it works

To access the SRAM:

• To set the high byte of the RAM address, write a byte to port 0x00.
• To set the low byte of the RAM address, write a byte to port 0x01.
• To read the RAM byte from the specified address, read a byte from port 0x02.
• To write the RAM byte to the specified address, write a byte to port 0x02.

Tip: The order of the RAM address lines does not matter. Neither does the order of the data lines.

Basic program

This RC2014 BASIC program tests whether the external SRAM works correctly. It prints “Pass” or “Fail”. The program takes about 10 minutes to run.

10  PRINT "Writing"
20  FOR H = 0 TO 255
30  OUT 0, H
40  FOR L = 0 TO 255
50  OUT 1, L
60  OUT 2, (H + L) AND 255
70  NEXT: NEXT
80  PRINT "Verifying"
90  FOR H = 0 TO 255
100 OUT 0, H
110 FOR L = 0 TO 255
120 OUT 1, L
130 IF INP(2) <> ((H + L) AND 255) THEN PRINT "Fail": END
140 NEXT: NEXT
150 PRINT "Pass"

A simple address decoder

This circuit shows how to connect a peripheral (a single switch) to the RC2014 without using the 74138 chip.

Circuit diagrams

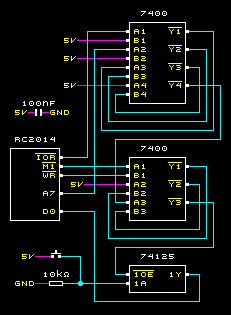

High-level circuit diagram (no VCC/ground, pins of ICs grouped by direction):

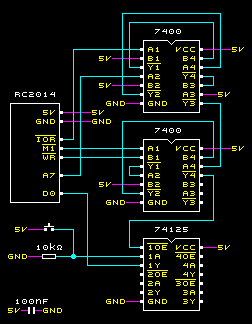

Low-level circuit diagram (has VCC/ground, actual pinouts except for the RC2014, mimics the layout on a breadboard):

List of components

• resistor, 10 kΩ
• capacitor, ceramic, 100 nF
• 2 × IC, 7400 (Quad 2-input NAND gates)
• IC, 74125 (Quad 3-state noninverting buffer with active low enables)
• switch (I used a DIP switch)

How it works

The 74125's 1OE signal is computed by seven NAND gates in the 7400 ICs: NOT ((NOT IORQ) AND (NOT A7) AND M1 AND WR), or equivalently IORQ OR A7 OR (NOT M1) OR (NOT WR).

Reading any I/O port between 0x00–0x7f will return the state of the switch in the least significant bit. In BASIC: PRINT INP(0) AND 1
